| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | B88003P |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Bronze Alloy, Cu6-6-3 | Condition: | 100%new |
|---|---|---|---|
| Size: | Max OD 200mm | Car Made: | Diesel Engine |
| Type: | Connecting Rod Bushing | OEM: | STD |
| Working Tempareture: | -195 Degree ~ +280 Degree | Warranty: | 1year |
| Quality: | High Performance | Shape: | Customized |
| Process: | Machining Or Sintering | ||
| Highlight: | Steel Sleeve Bushings,Bronze Flanged Bushings |
||
| Material Series |
Brass, Bronze, Lead-tin Bronze Alloy, Aluminum Bronze Alloy, Copper Zinc Silicon Alloy,Nozzle Copper, Aluminum Manganese Brass Alloy
CuSn5Pb5Zn5, ZCuSn7Pb7Zn3, ZCuSn6Zn6Pb3, ZCuPb10Sn10, ZCuPb15Sn8, ZCuSn10P1, ZCuSn10Zn2, ZCuSn7P0.2, ZCuA19Fe4, ZCuA19Fe4Ni4Mn2, ZcuA11OFe3Mn2
American Standard:C83600, C90500, C93200, C93700, C95400, C95500, C95700.
|
|---|---|
| Processing Size | Max OD 200 mm |
PRODUCT SHOW:
Sintered Bushing Performance:
=>Chemical Composition: CuSn6Zn6Pb3, Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
=>Working Temperature: Between -100 with +200
=>Density & Gravity: 6.4-7.5g/cm3
=>Oil Impregnation Rate: 18% - 23%
=>Graphite content Rate: 1% - 3%Max
=>Hardness: HB30-75 for Bronze ; HB 35-150 for Iron
Sintered Bushing Advantage:
1.With lower wear rate and long lifetime.
2.Provides maintenance free operation & Dry working circustmance.
3.Suited for high static and dynamic load.
4.With low and smoothly coefficient of friction and without stick-slip effects.
5.Suitable for dirty, impact and edge load.
6.Better thermal conductivity property.
Product Range:
Sleeve Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
| DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
| FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
| FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
| JDB,JCB | 8mm | 12mm | 160mm | 180mm | 150mm |
| FU | 1.5mm | 3mm | 50mm | 70mm | 70mm |
| JGB | 1.5mm | 3mm | 300mm | 320mm | 100mm |
Flange Bearings:
| Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Min.F.D. | Max.F.D. | Max. Length |
| DU,SF-1 | 6mm | 8mm | 40mm | 44mm | 12mm | 53mm | 40mm |
| JF-800 | 40mm | 46mm | 95mm | 105mm | 60mm | 144mm | 127mm |
| FB090 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| FB092 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
| JDB | 10mm | 14mm | 120mm | 140mm | 22mm | 170mm | 100mm |
| FU | 6mm | 12mm | 50mm | 60mm | 14mm | 70mm | 70mm |
| JGB | 6mm | 12mm | 300mm | 320mm | 35mm | 340mm | 130mm |
FAQ:
Q1. Where is your company?
A: We are loed in Guangzhou City, Guangdong Province, China(Mainland).
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB.
Q5. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our advance:
1.Profession in diesel engine parts
2.Provide the most resonable service
3.The most compeitive price&goods
4The completly engine model and parts
5.Manage to finish the client's resonable demand
| Basic type | Unit |
B-21 High Load |
B-06 Standard |
B-03 General |
B-01 Economic |
| Static load | Mpa | 240 | 240 | 240 | 150 |
| Dynamic load | Mpa | 160 | 150 | 100 | 30 |
| Density | g/cm3 | 2.0 | 2.0 | 2.0 | 2.0 |
| Max.speed | m/s | 0.20 | 0.20 | 0.20 | 0.10 |
| Max.PV | MPa*m/s | 2.0 | 2.0 | 1.8 | 1.6 |
| Coefficient of friction | - | 0.03~0.12 | 0.03~0.12 | 0.03~0.12 | 0.15~0.25 |
| Working Temp. | ℃ | ±180 | ±180 | ±180 | ±120 |
| SHORT-TIME WORK TEMPERATURE | ℃ | -180~+230 | -180~+230 | -180~+230 | -120~+140 |
| Radial compressive strength | Mpa | 550 | 550 | 550 | 200 |
| Hardness | HRM | 95 | 95 | 95 | 85 |
| Linear thermal expansion factor | Um/m℃ | 13×10-6 | 13×10-6 | 13×10-6 | 30×10-6 |
| Color | - |
Black
|
Black
|
Black
|
Black
|
OUR SHIPPING:

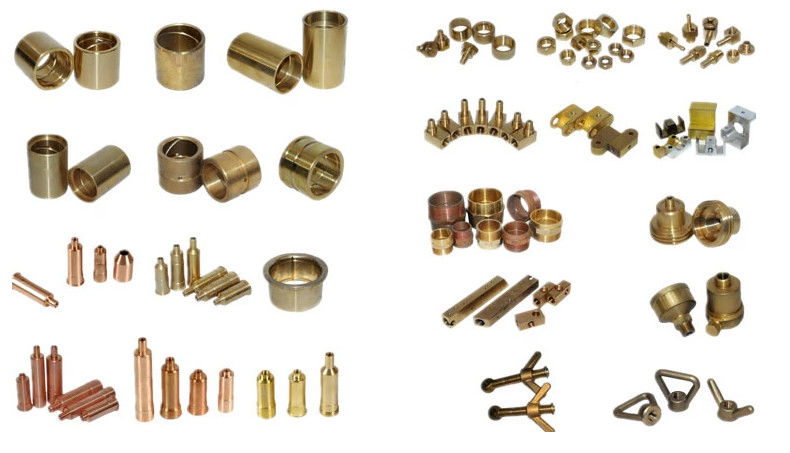

CONROD BUSHING PICTURE BE BELOW:
