| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | DH100 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | Usually within one week after receive payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Type: | Wet Cylinder Liner | Color: | White/ Black |
|---|---|---|---|
| Diameter: | 120.0mm | Total Length: | 280.0mm |
| Number Of Cylinder: | 6 | OEM: | 1-11261-241-0 |
| Warranty: | 100000 Miles | Size: | STD |
| Car Make: | Fit For ISUZU | Quality: | High Quality |
| Material: | Aluminum Steel | Shipping: | By Sea, By Air, By Express |
| Cylinder Feature: | Shiny,Phosophate,Chrome | ||
| High Light: | cylinder liner sleeve,diesel engine cylinder liner |
||
Excavtor Spare Parts Cylinder Liner for DH100 Rebuild Kit With Cylinder liner 1-11261-241-0
SPECIFIION:
| Model Number | DH100 |
| Car Make | for ISUZU |
| Cylinder Number | 6 CYL |
| Bore Diameter | 120 mm |
| Flange Diameter | 141 mm |
| Total Length | 280 mm |
| Flange Height | 11 mm |
JTP/YJL MECHANICAL PARTS ADVANTAGES:
1.Factory Price,Factory Supply,Factory Genuine Quality
2.All earthmoving equipment,excavator engine parts supply
3.All quality level choosen,All price level choosen ,All brand packing choosen
4.Low MOQ,Sample delivery.
5.24 hours online feedback,email replay within 5hours.solve any problem might occurs.
SURFACE TREATMENT:
CHROMED,PHOSPATED,POLISHED,ALUMINUM INCLUSIVE
| Principal Surface Treatment Processes | |
| DCP | Phosphating and chromium plating on jacket only |
| DC | Water jacket only is chromium plated |
| DPF | Water jacket only is phosphated |
| BCP | Phosphating and inner diameter is chromium |
| FF | Inner diameter is Full-Finished for dry type liner |
| SF | Inner diameter is Semi-Finished for dry type liner |
| IN WHITE | Without any special surface treatment |
| DCU | Outer diameter is cooper plated for dry type liner |
| PF | Phosphated all over |
| Air compression liner | |
| Chromed liner | |
| Liner |
|
| Chemical Ingredients Of Cylinder Liner(%) | |||||||||||||
| No. | Name of Material | C | S | Si | P | Mn | Cr | B | Cu | Ni | V+Ti | Mo | Mechanical Properties |
| 1 | Boron Cast Iron | 2.8~3.6 | <=0.12 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.3~0.5 | 0.04~0.08 | Brinell Hardness>210HB, σb>=200Mpa |
||||
| 2 | Boron Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.2~0.5 | 0.04~0.08 | Right amount | Brinell Hardness>210HB, σb>=240Mpa |
|||
| 3 | Vanadium, Titanium Gray Cast Iron | 3.0~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.6~1.2 | 0.2~0.5 | >=0.3 | Brinell Hardness>210HB, σb>200Mpa |
||||
| 4 | Molybdenum Nickel Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 1.8~2.4 | <=0.3 | 0.5~1.0 | 0.2~0.5 | 0.3~0.6 | Right amount | Right amount | Brinell Hardness>210HB, σb>235Mpa |
||
| 5 | Bainite Gray Cast Iron | 2.7~3.3 | <0.10 | 1.7~2.5 | <=0.3 | 0.3~0.7 | 0.~0.5 | Right amount | Right amount | Right amount | Brinell Hardness270~330HB, σb>350Mpa |
||
| 6 | Nickel Copper Gray Cast Iron | 2.8~3.7 | <0.12 | 1.8~2.7 | <=0.3 | 0.5~1.2 | 0.15~0.5 | Right amount | Right amount | Brinell Hardness>200HB, σb>196Mpa |
|||
ENTERPRISE VISION:
To become the most respected and professional parts supplier in China and overseas.
To become an excellent auto-parts export enterprise with standardized operation, efficient service, and an active atmosphere.
ENTERPRISE TARGET:
To help customers attain success. Our customers’ satisfaction is our most accurate guide for action.
To help our staff attain success. Lianzhong supports its employees so that they enjoy their work and life.
To help our enterprise attain success. We find innovative ways for rapid and stable growth.
DESTRIPTION:
| TYPE | ENGINE MODEL | OEM REF | NO.CYL | CYL DIA METER | TOTAL LENGTH |
| ISUZU | DA120 DA220 | 9-11261-287-1 | 6 | 100 | 220 |
| ISUZU | DA640A | 9-11261-302-0 | 6 | 102 | 220 |
| ISUZU | DA640B | 9-11261-293-0 | 6 | 102 | 220 |
| ISUZU | DA640C | 9-11261-288-0 | 6 | 102 | 228 |
| ISUZU | 10PA1/10PB1 | 1-11261-063-0 | 10 | 115 | 219.5 |
| ISUZU | 10PB1(O) | 10 | 115 | 219.5 | |
| ISUZU | 8PC1/10PC1 | 1-11261-076-0 | 8/10 | 119 | 219.5 |
| ISUZU | 10PC1(NEW) | 1-11261-143-1 | 10 | 119 | 219.5 |
| ISUZU | 8PC1/10PC1 | 1-11261-111-0 | 8/10 | 119 | 219.5 |
| ISUZU | 10PC1(NEW) | 1-11261-147-0 | 10 | 119 | 219.5 |
| ISUZU | 10PD1 12PD1 | 1-11261-161-1 | 10/12 | 119 | 234.5 |
| ISUZU | DH100 | 1-11261-241-0 | 6 | 120 | 280 |
| ISUZU | 6QA1 | 1-11261-160-0 | 6 | 125 | 282 |
| ISUZU | 6QA1T | 1-11261-074-0 | 6 | 125 | 257 |
OUR SERVICE:
PROFESSIONALISM:
We focus on superior service, prompt action, and professional work.
RESPONSIBILITY:
We bear all consequences with courage. Errors are opportunities to learn and gain experience. Our initiative to seek continual improvement fuels our success.
PASSION:
We have passion and confidence in our ability to overcome any obstacle. We have a dream and focus all our efforts towards achieving it. We have endurance to conquer hardships and bear the results.
SERVICE:
All our employees at Guangzhou Teikuko specialize in providing prompt, efficient, and friendly service to our customers. Every department is oriented for our customers’ needs, and our employees’ driving force is to continuously meet customer expectations.We hold our client relationships in highest regard.
HONESTY:
Guangzhou Teikuko promises to perform our duties as a trusted enterprise and conduct our business with fairness and honestly. We strive to become a respected name in the global market.
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

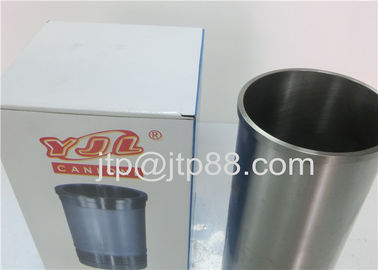

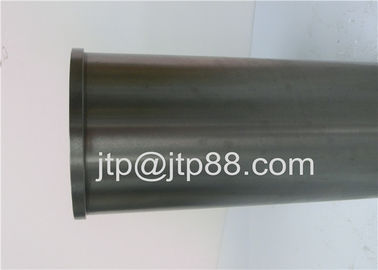

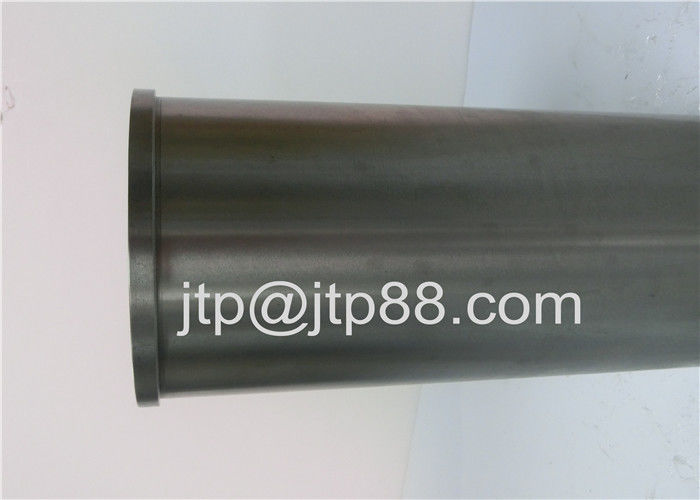

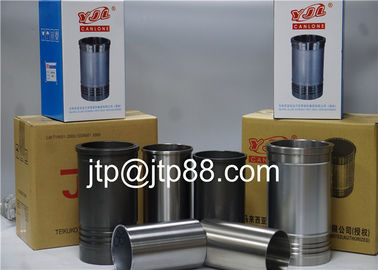

CYLINDER LINER PICTURE AS BELOW:
