| Place of Origin: | China |
| Brand Name: | JTP |
| Model Number: | EM100 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with green sack for outer packing |
| Delivery Time: | 5~10days |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000pcs per month |
| Surface: | Alfin, Anoziding, Bush, Coating | Condition: | 100%new |
|---|---|---|---|
| OEM: | 13216-1370 13211-1700 | Diameter: | 124.0mm |
| Length: | 139.3mm | Packing: | 2.8+2.5+3.0+5.0mm |
| Piston Pin Size: | 42*98mm | Piston Comp: | 80.4mm |
| Car Make: | HINO | Piston Features: | Sn-plated |
| Appliion: | Engineering Machinery Engine | Size: | Standard Size |
| High Light: | icon forged pistons,cast iron piston |
||
Japanese auto engine parts Wet type P09C Cylinder Liner/Sleeve 13211-2061 13216-2460
SPECIFIIONS:
| HINO EM100 Appliion: TRUCK No. CyI: 6 Diameter: 124.0MM |
|||||
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
| 13216-1370 | 80.4 | 139.4 | 42x98 | w/al-fin | |
| Piston Ring | OEM No. | Size1 | Size2 | ||
| 13011-1921 | 2.8DK+2.5+3.0+5.0 | ||||
| Cylinder Liner | OEM No. | Size | Flange | ||
| 11467-1661A | 124.0x129.0x236.0 | 134.0x8.0+0.8 | |||
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| 11701-1460 | 13201-1400 | 13272-1250 | |||
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 13711-1410 | 54.0 | 10.0 | 145.0 | ||
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| 13715-1240 | 48.0 | 10.0 | 144.0 | ||
| Valve Seat | OEM No. | ||||
| Valve Guide/Sub Parts | OEM No. | ||||
PISTON TYPES:
Since the piston of the internal combustion engine works under the conditions of high temperature, high pressure and high load, the requirement for the piston is relatively high, so the classifiion of the piston of the internal combustion engine is mainly discussed.
1. According to the fuel used, it can be divided into gasoline engine piston, diesel engine piston and natural gas piston.
2. According to the material of the manufacturing piston, it can be divided into cast iron piston, steel piston, aluminum alloy piston and combined piston.
3. According to the process of manufacturing the piston blank, it can be divided into gravity casting piston, squeeze casting piston and forging piston.
4. According to the working condition of the piston, it can be divided into two egories: non-boost piston and booster piston.
5. According to the purpose of the piston, it can be divided into car piston, truck piston, motorcycle piston, marine piston, tank piston, tractor piston, lawn mower piston and so on.
SKILLS REQUIREMENT:
1. It must have sufficient strength, rigidity, small quality and light weight to ensure minimum inertia force.
2. Good thermal conductivity, high temperature resistance, high pressure, corrosion, sufficient heat dissipation capacity, and small heat receiving area.
3. There should be a small coefficient of friction between the piston and the piston wall.
4. When the temperature changes, the size and shape change should be small, and the minimum gap should be kept between the cylinder walls.
5. The coefficient of thermal expansion is small, the specific gravity is small, and the wear resistance and heat strength are good.
PRODUCT RANGE:
| TYPE | ENGINE MODEL | OEM REF | NO.CYL | BORE | LENGTH |
| HINO | W06E | 13216-1791B | 6 | 104 | 106.15 |
| HINO | EH700 | 13216-1181B | 6 | 110 | 121.3 |
| HINO | H07C(1500) | 13216-2300 | 6 | 110 | 121.5 |
| HINO | H07C(2290) | 13216-2290 | 6 | 110 | 121.5 |
| HINO | H07D | 13211-2260 | 6 | 110 | 100 |
| HINO | H07D | 13211-1980 | 6 | 110 | 100 |
| HINO | EB400 | 13216-1230 | 6 | 120 | 155.45 |
| HINO | EM100 | 13216-1370 | 6 | 124 | 139.3 |
| HINO | EF300 | 13216-1241A | 8 | 132 | 145.2 |
| HINO | 13216-1011A | ||||
| HINO | EF500 | 13216-1252A | 8 | 135 | 145 |
| HINO | 13216-1140A | ||||
| HINO | EF550 | 13216-1560A | 8 | 135 | 145.25 |
| HINO | 13216-1140A | ||||
| HINO | EK100 | 13216-1224A | 6 | 137 | 145.33 |
| HINO | EK100T | 13216-1410A | 6 | 137 | 145.33 |
| HINO | EK200 | 13211-1900 | 6 | 137 | 145.5 |
| HINO | EF750 | 13216-1860A | 8 | 137 | 144.3 |
| HINO | 13216-1170A | ||||
| HINO | EF750T | 13216-1742A | 8 | 137 | 144.3 |
| HINO | 13216-1152 | ||||
| HINO | K13D | 13211-2470 | 6 | 137 | 144.2 |
| HINO | F17C | 13216-1910 | 8 | 139 | 144.3 |
| HINO | 13216-1180 | ||||
| HINO | F17E | 13216-2110B | 8 | 139 | 144.3 |
| HINO | 13226-1210B | ||||
| HINO | V22C | 13216-1842 | 10 | 139 | 144.3 |
| HINO | 13226-1162 | ||||
| HINO | F20C | 13216-2671A | 8 | 146 | 138.3 |
| HINO | 13226-1321A | ||||
| HINO | H06C | 13216-1750 | 6 | 108 | 121.5 |
| HINO | H06CT | 13216-1810 | 6 | 108 | 121.5 |
| HINO | EP100 | 13216-1450 | 6 | 120 | 144.6 |
| HINO | EL100 | 13216-1272A | 6 | 116 | 130.6 |
| HINO | K13C(12V) | 13216-2140 | 6 | 135 | 145.5 |
| HINO | K13C(24V) | 13216-2330 | 6 | 135 | 145.5 |
OUR PACKING :
Standard export hard cartons to assure the safety during the transformation.
Put foam bag inside to protect the products.
We can offer neutral clean box, original box or customer's special brand box.
Custom-made boxes are only avaliable for big order with large quantity.
OUR SHIPPING:
Ship by air or express for the products with small volumn or little amount. Ship by vessel for large volumn products.
Please inform your shipping methods when place an order, or we can choose the cheapest method for you from our own forwarders.
For our stock products, we can ship to you within 3 days, for the products out of stock, we will inform you advance.
Please note that the shipping charge for brand products would be much expensive than neutral products.
FAQ:
1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.
2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.
3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.
4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.
5.How to buy with you?
You can use "Chat now!" or email to us.
6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.
7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.
8.What information should I let you know if I want to get a quotation?
To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

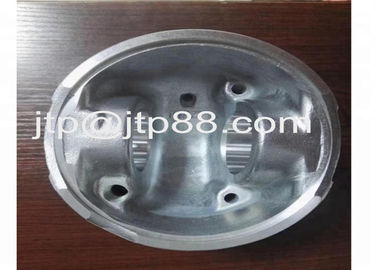

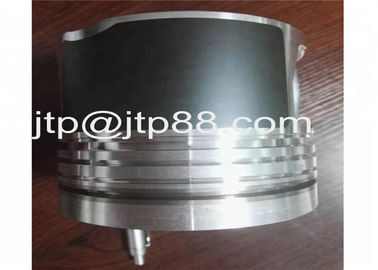

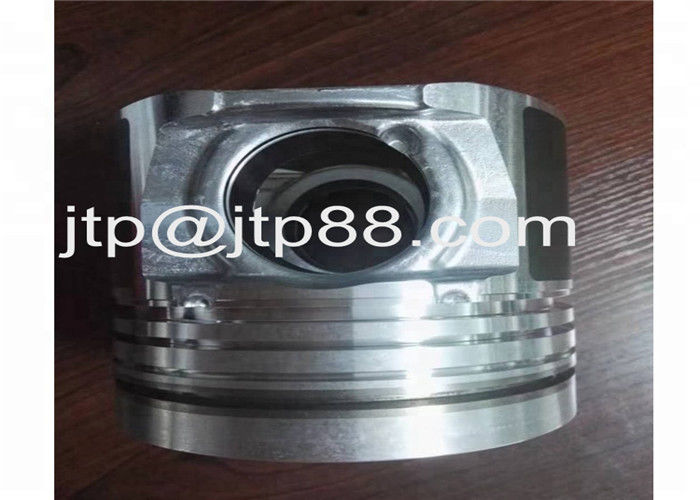

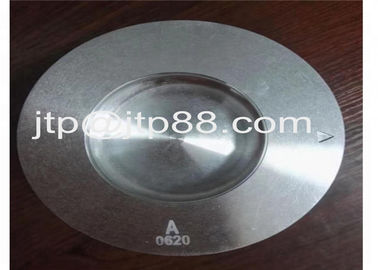

ENGINE PISTON PICTURE AS BELOW:
,
WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
